Human Immunodeficiency Virus HIV-2 gp36 protein

Expression Host：Nicotiana benthamiana plants

Clonality：N/A

Species and Isotype： Original Gene species：HIV-2 ；Synonyms：Envelope gp36；UniProtKB: P04577 (amino acids 581-611)；Sequence：AIEKYLQDQARLNSWGCAFRQVCHTTVPWVN；Tag:Mouse Fc IgG2a with hinge region;Concentration ：0.25-0.5 mg/ml ；Verified Applications：Western blot, ELISA  Molecular Weight (kDa)：Different glycoforms at ~31 - ~35 kDa on SDS-PAGE under reducing conditions. Dimer commonlyformed at ~65 kDa.

Description：N/A

Verified Applications：N/A

Dilution Range：N/A

Tested Species Reactivity ： Human

Concentration ：N/A

Form ： Liquid

Storage：Short-term (up to one week): 2 – 8 °C

Long term: Aliquot and store at – 20 °C

Store immediately. Aliquot and avoid multiple freeze-thaw cycles.

Storage Buffer：0.1   M Phosphate Buffered Saline, pH 7.8. Preservative: None

Purification Notes： This product was purified using Protein A- affinity chromatography.

Purity：≥ 95% as determined by SDS-PAGE

General Notes：For Research Use only, unless otherwise indicated.

Image：

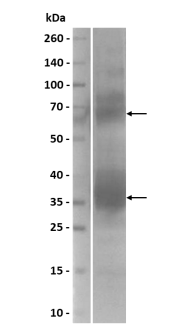

Figure 1. Western blot: Functional Western blot analysis to evaluate if the gp36 Fc protein can be detected by HIV-2 serum. Onemicrogram of gp36 Fc protein under denaturing and reducing conditions was probed with HIV-2 patient serum at a 1: 2 000 dilution.Goat Anti-Human IgG (Fc-specific) HRP (Sigma Aldrich, A0170) at a 1: 5 000 dilution was used for detection. The expected proteinband sizes of monomer gp36 Fc (~35 kDa) and dimer gp36 Fc (~65 kDa) were observed, with some additional non-specific bandsthat can be as a result of different glycoforms of the protein.

Figure 2. Indirect ELISA. ELISA analysis of gp36 Fc protein at 2 ng/µl probed with 1:200 and 1:400 dilution of patient HIV-1, HIV2 and negative serum. A Goat Anti-Human IgG (Fc-specific) HRP (Sigma Aldrich, A0170) at a 1: 10 000 dilution was used fordetection.
