Human Immunodeficiency Virus Type 1 gp41 Protein，Animal Free

Expression Host：Nicotiana benthamiana plants

Clonality：N/A

Species and Isotype： Synonyms：HIV-1 envelope glycoprotein gp41；Sequence：RLLALETLIQNQQLLNLWGCKGRLVCYTSV；Tag：Mouse Fc

                                     IgG2a with hinge region；Molecular Weight (kDa)： Different glycoforms at ~31 - ~35 kDa on SDS-PAGE under

                                     reducing conditions. Dimer commonlyformed at ~65 kDa. Accession Number：This sequence was obtained from Zouhair

                                     et al (2006) Group O Human Immunodeficiency Virus Type1 Infection That Escaped Detection in Two Immunoassays.

                                     Journal of Clinical Microbiology, 44(2):662–665. doi:10.1128/JCM.44.2.662–665.2006.

Description：This product is a recombinant HIV-1 gp41 protein, fused to a Mouse Fc Tag. It was produced inNicotiana benthamiana plants via

                      Agrobacterium tumefaciens-mediated infiltration.

Verified Applications：Western blot, ELISA

Dilution Range： Western blot (1: 1 000-1: 2 000) ELISA (1: 1 000-1: 5 000)

Tested Species Reactivity ： Verified Species Immunoglobulin Affinity：Human IgG1 (++++)；Rabbit IgG (+++)；Mouse IgG1 (+)；Mouse IgG2a (++++)；Alpaca IgG2b (++++)

Concentration ：0.25-0.5 mg/ml

Form ：Liquid

Storage：Short term (up to one week): 2 – 8 °C

Long term: Aliquot and store at – 20 °C

Store immediately. Aliquot and avoid multiple freeze thaw cycles.

Storage Buffer：0.1  M Phosphate Buffered Saline, pH 7.4. Preservative: None

Purification Notes： This product was purified using Immobilised metal affinity chromatography (IMAC).

Purity：≥ 85 % as determined by SDS-PAGE

97.06% as determined by Mass Spectrometry

General Notes：For Research Use only, unless otherwise indicated.

Image：

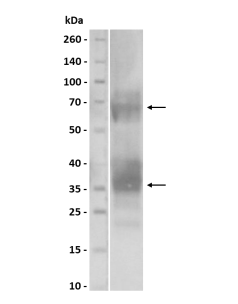

Figure 1. Functional Western blot analysis to evaluate if the gp41 Fc protein can be detected by HIV-1 serum. One microgram ofgp41 Fc protein under denaturing and reducing conditions was probed with HIV-1 patient serum at a 1: 2 000 dilution. Goat AntiHuman IgG (Fc-specific) HRP (Sigma Aldrich, A0170) at a 1: 5 000 dilution was used for detection. The expected protein band sizesof monomer gp41 Fc (~35 kDa) and dimer gp41 Fc (~65 kDa) were observed, with some additional non-specific bands that can beas a result of different glycoforms of the protein.

Figure 2. Specificity Western blot analysis. One microgram of gp41 Fc protein under denaturing and reducing conditions wasprobed with HIV-2 patient serum at a 1: 5 000 dilution. Goat Anti-Human IgG (Fc-specific) HRP (Sigma Aldrich, A0170) at a 1: 10000 dilution was used for detection. A protein band at the size of a gp41 Fc dimer (~65 kDa) was observed.
